Welcome
Tech-Ni-Plant has been established for over 35 years and offers the unique service of supplying a full range of surface treatments, including both coating and plating processes that can also be further enhanced by Ion Implantation.
Our surface treatments can, improve the life of your existing tooling, greatly improve your production volumes between refurbishment, maintain your quality or lower your finished component costs.. Call us.
Our Surface Treatmants
- Ion Implantation: A low temperature treatment which improves wear resistance and micro hardness. Can be used to enhance all other coatings and plating processes.
- Hard Chrome Plating: Excellent corrosion resistant coating with a hardness of 72HRC. Used to protect new parts and can deposit 0.5mm in rework.
- Electroless Nickel Plating: A corrosion resistant uniform coating used to protect or build up complex shaped parts, 3-100 microns thickness.
- Eas-i-glide: Brilliant aid to mould release, a nickel PTFE composite.
- Crionising: A combination of Ion Implantation and Hard Chrome plating which increases micro hardness to 85HRC and wear resistance by 3 times.
- Nionising: A combination of Ion Implantation and Electroless Nickel plating which increases micro hardness to 60 HRC and improves wear resistance by 3 times.
- Eas-i-glide Xtra: A combination of Ion Implantation and Eas-i-glide produces a harder release coating.
- Diamond Like Coating: A very thin low friction coating with high hardness 80 HRC.
- Titanium Nitride Coating (TiN): A 2-3 micron coating, gold in colour with a coefficient of friction against steel of 0.6.
- Titanium Carbo Nitride Coating (TiCN): A 2-3 micron coating, pale blue in colour with a coefficient of friction against steel of 0.15.
- Chromium Nitride Coating (CrN): A 3-4 micron coating, silver grey in colour with a coefficient of friction against steel of 0.3.
- Friction Guard Nano Coating (FGN): A 2-3 micron coating, pink in colour with a coefficient of friction against steel of 0.15.
- ( All the above can be further enhanced by Ion Implantation.)

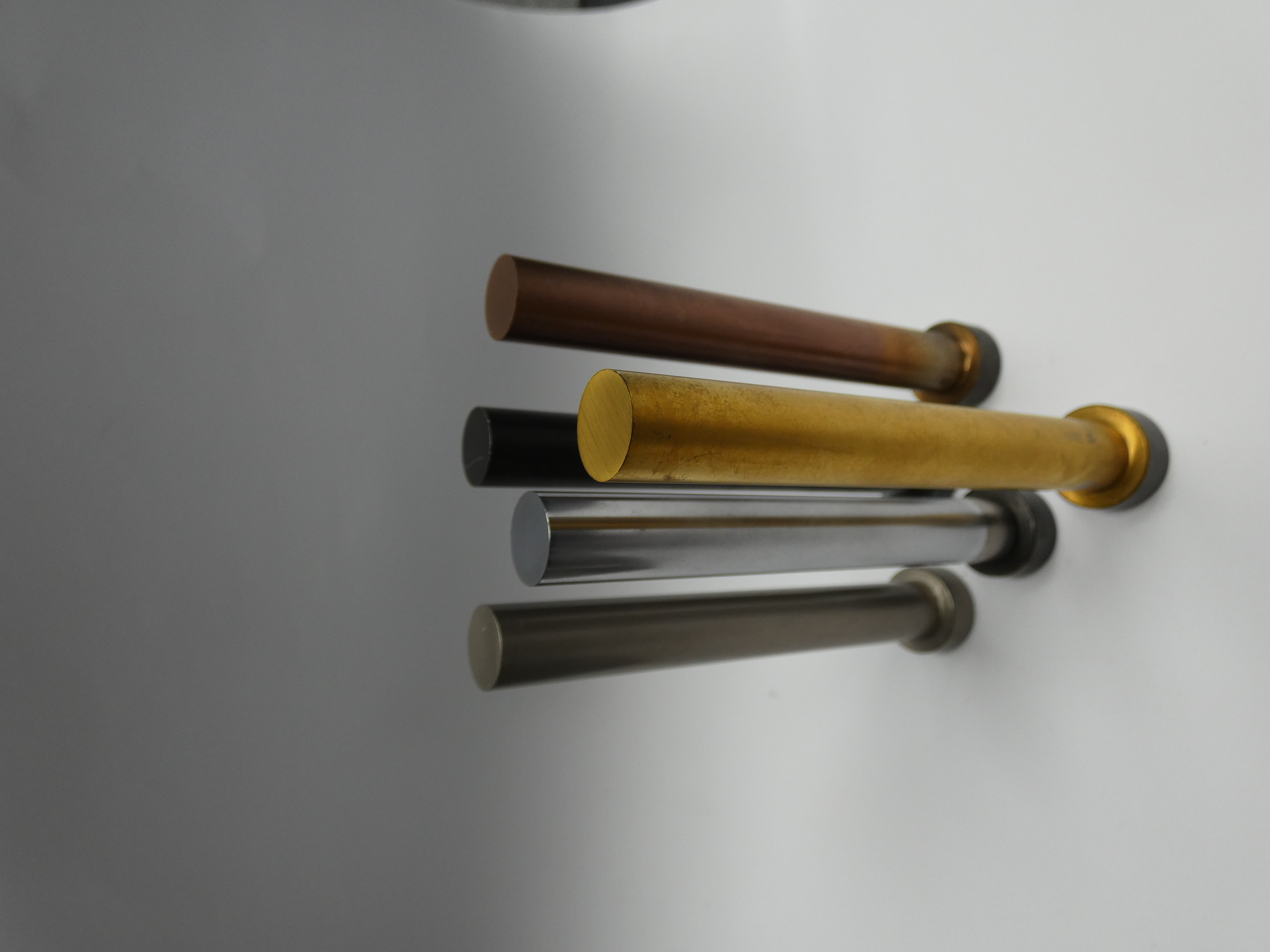

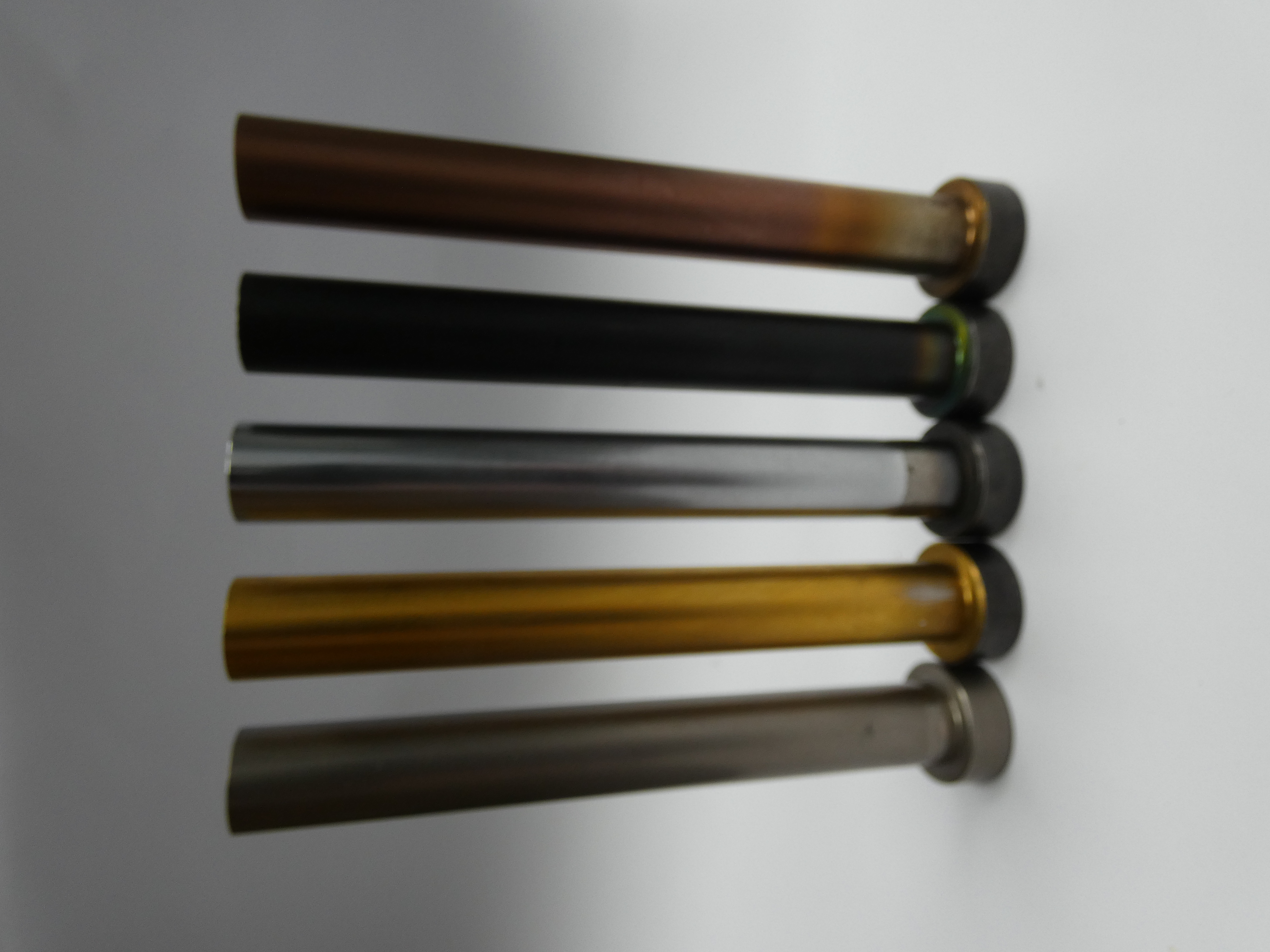

PVD Coatings

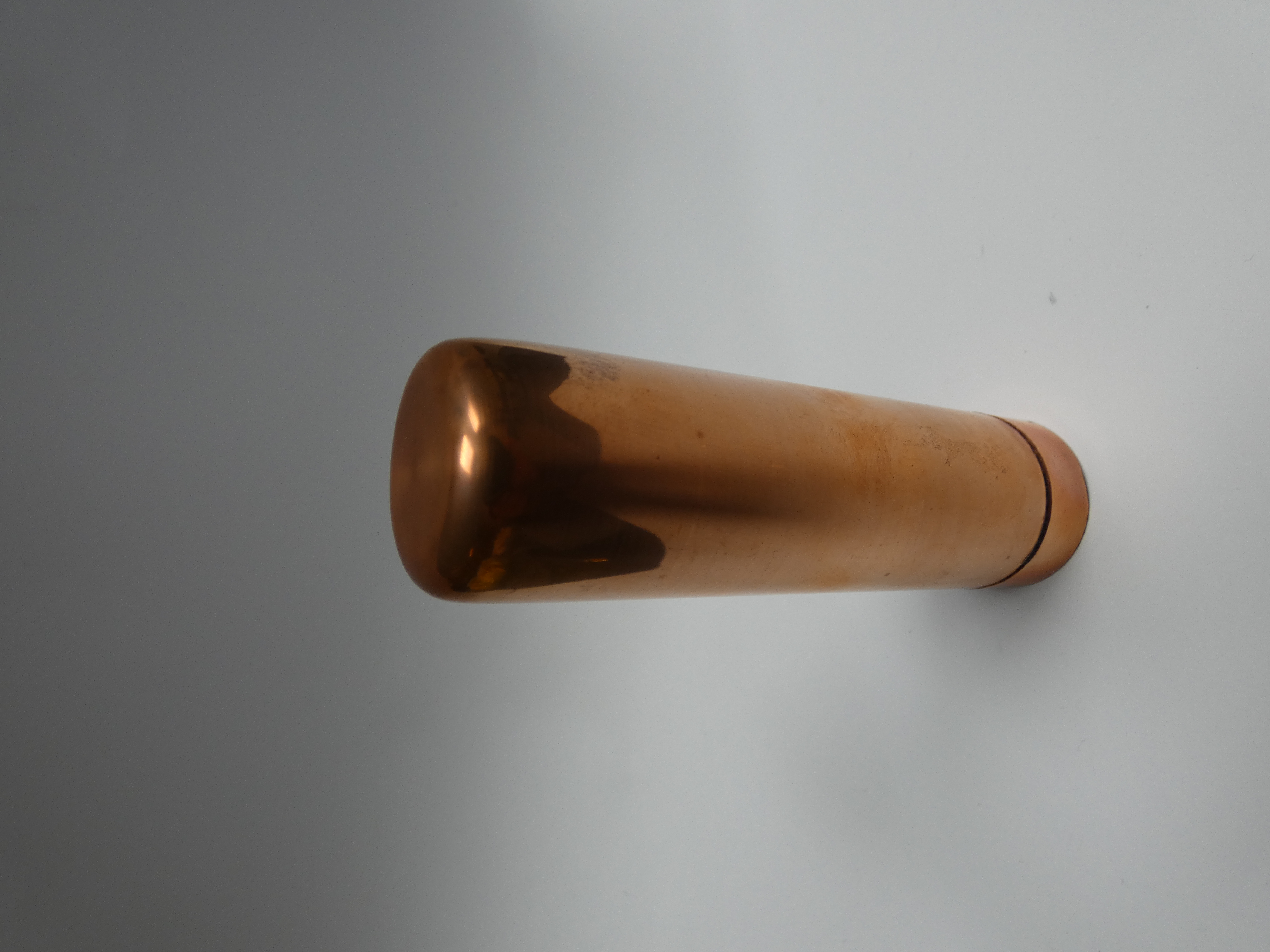

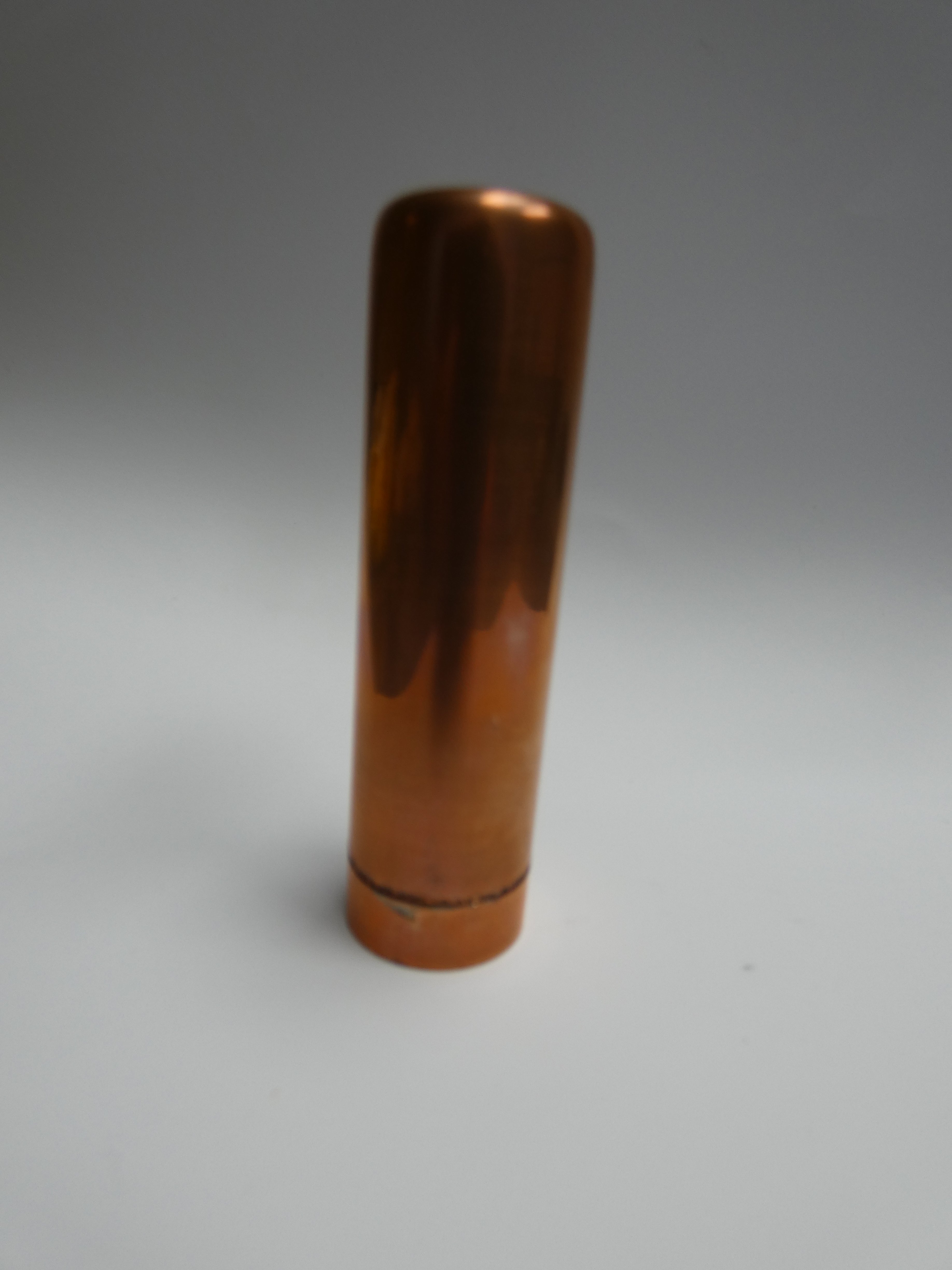

Electroless Nickel Plating

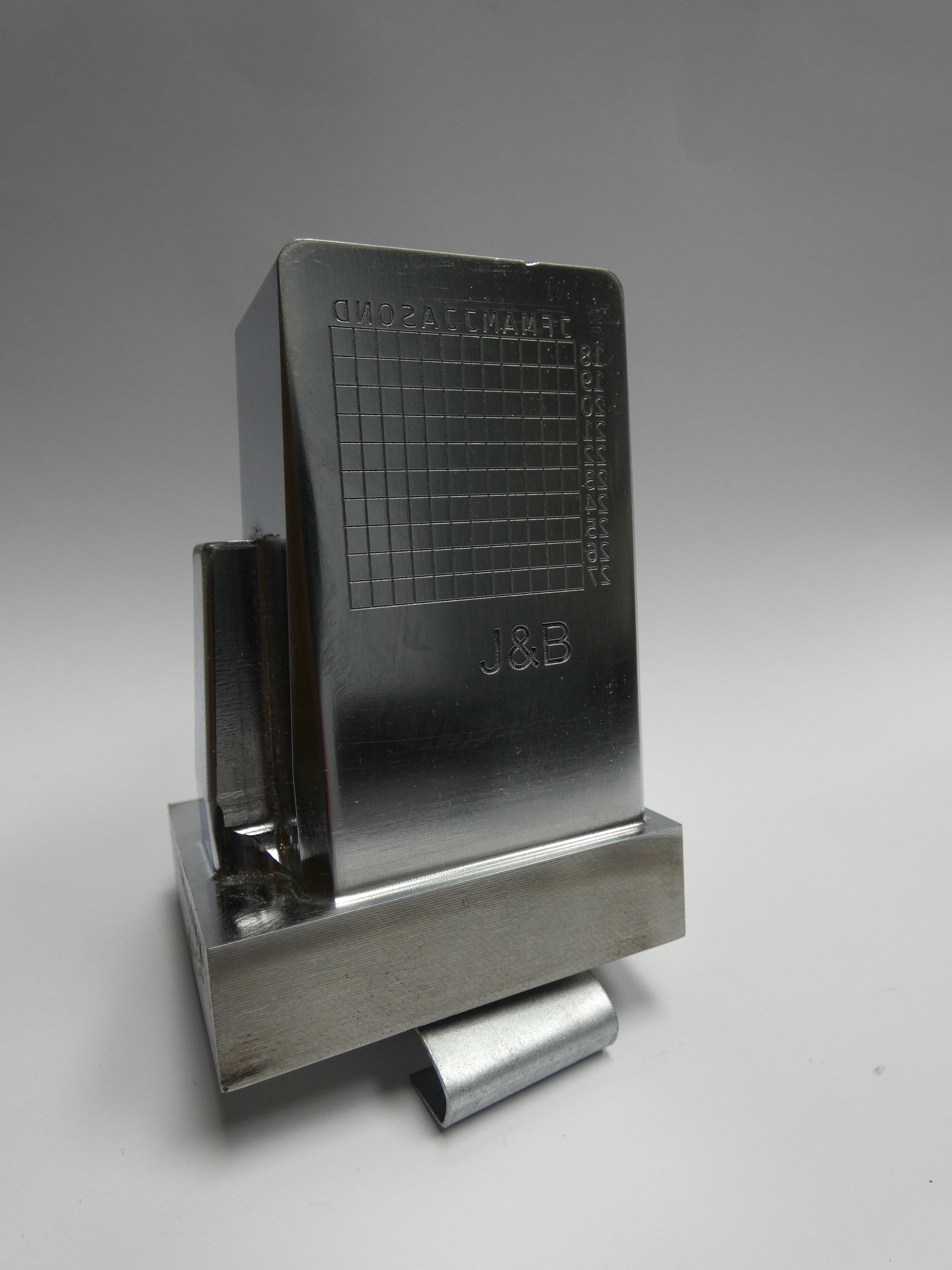

Hard Chrome Plating

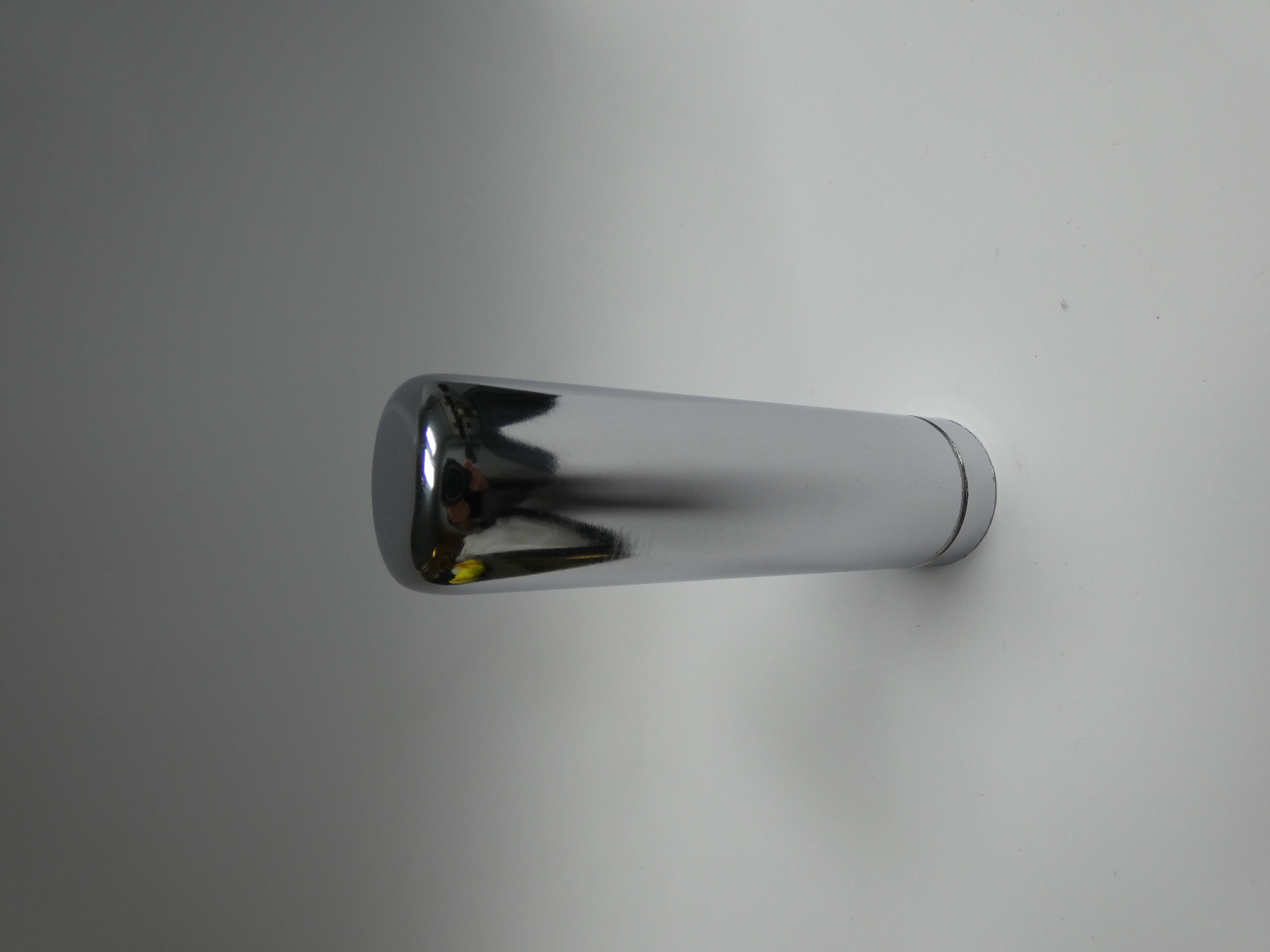

Chrome Plating

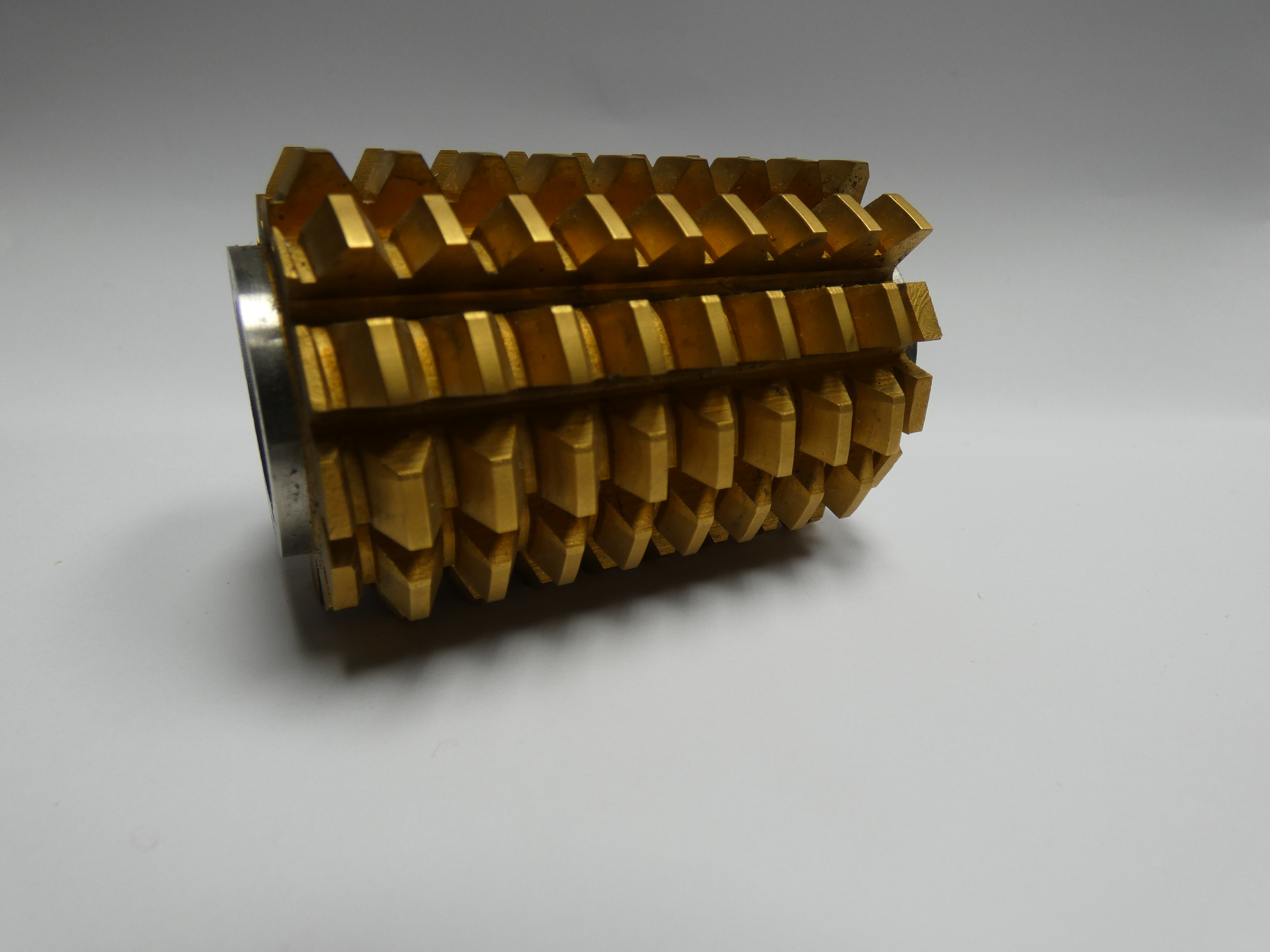

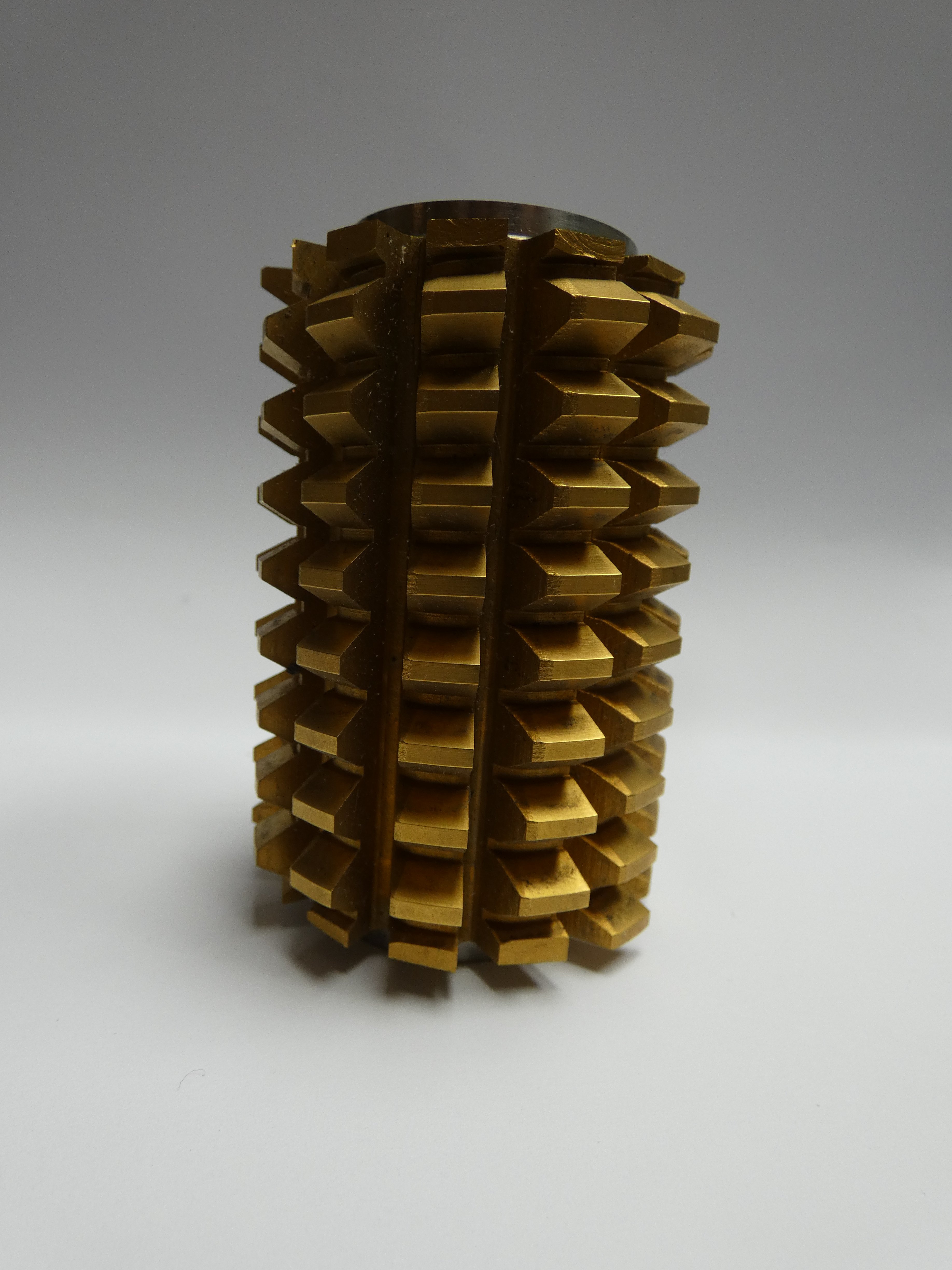

Titanium Nitride Coating

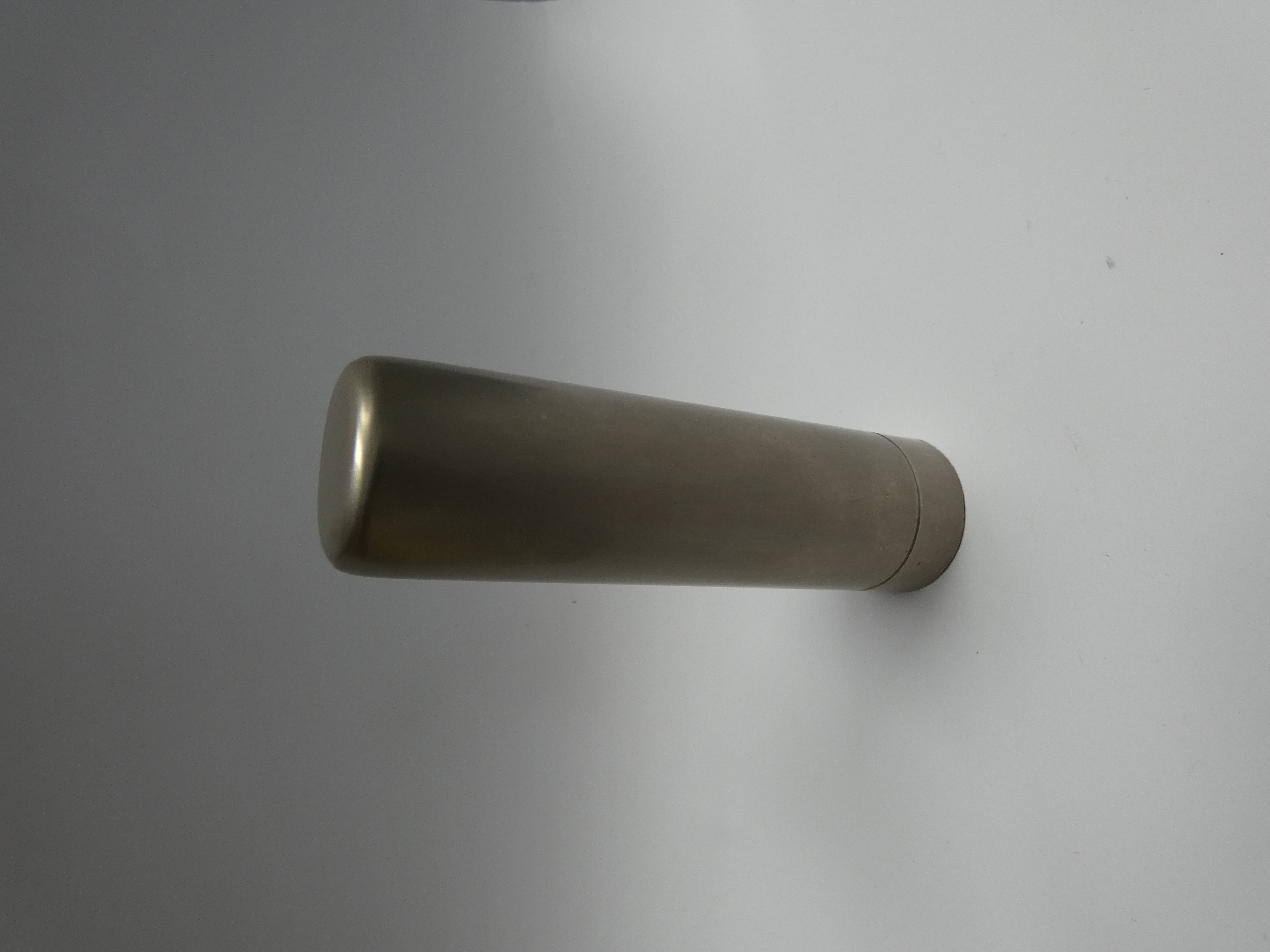

Electroless Nickel Plating
- Maintaining the quality of sharp edges, textured finishes, and polished surfaces for far longer.
- Releasing parts from complex designs far more easily or not having to use mould release.
- Reducing friction and pick up between metal surfaces such as up and aways, pins and sleeves or side cores.
- Protecting tooling from corrosion and reducing of staining and mould deposit
